Integrations

EAS trigger boxes have Normally Open, Normally Closed, and Common connections accessible via terminal strip. These contact closure connections make it simple to trigger presets, mutes, and other automations. Below are pinouts and links to manuals for common production devices.

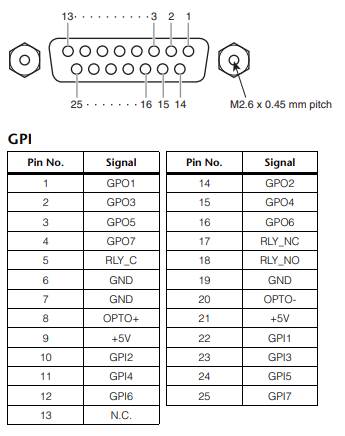

Yamaha Rivage PM

Via System Setup Guide & Operation Manual

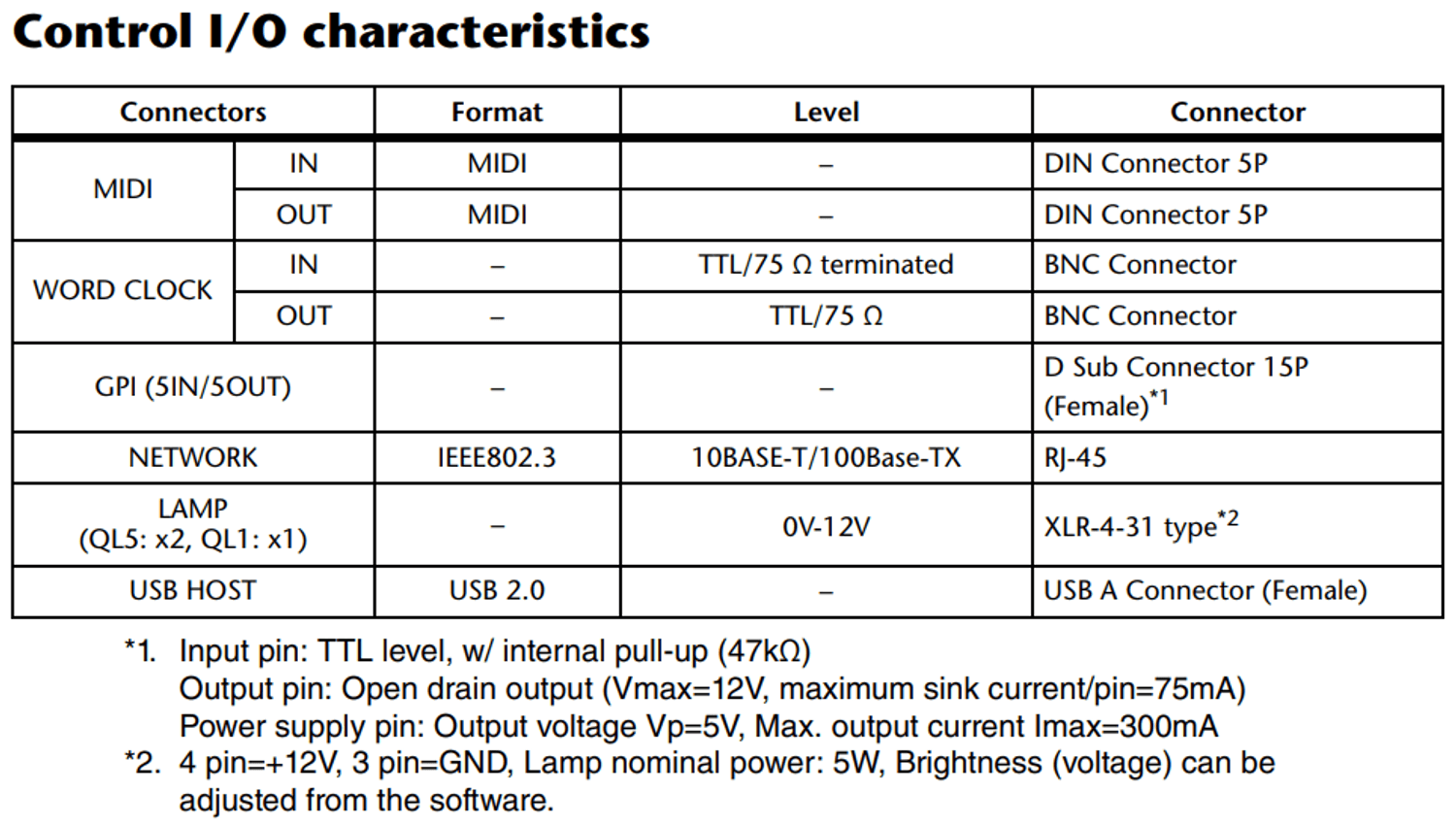

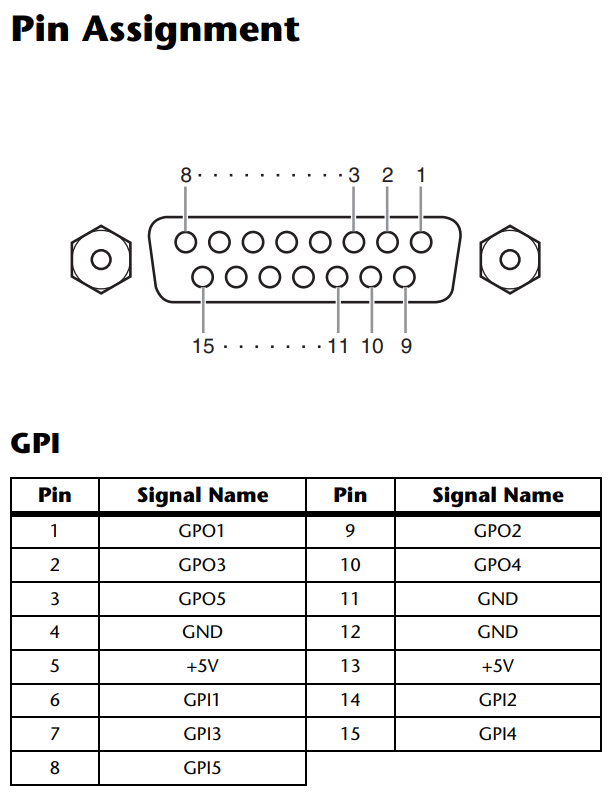

Yamaha QL/CL

Via QL5 QL1 V5 Reference Manual

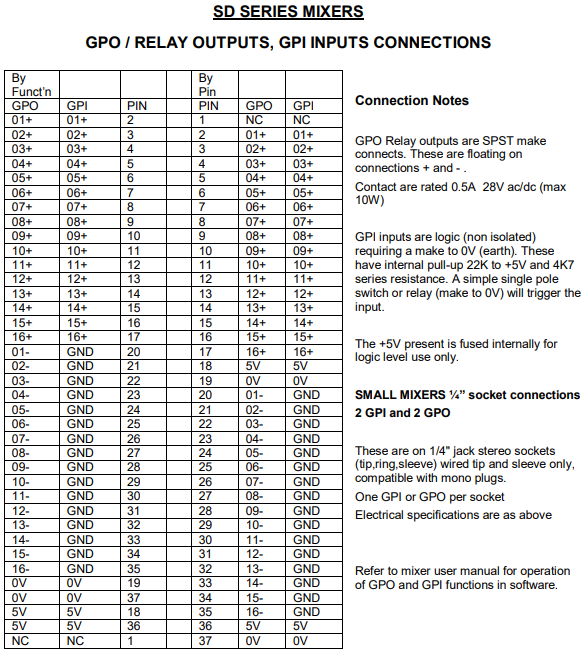

DiGiCo SD Series

via Technical Bulletin

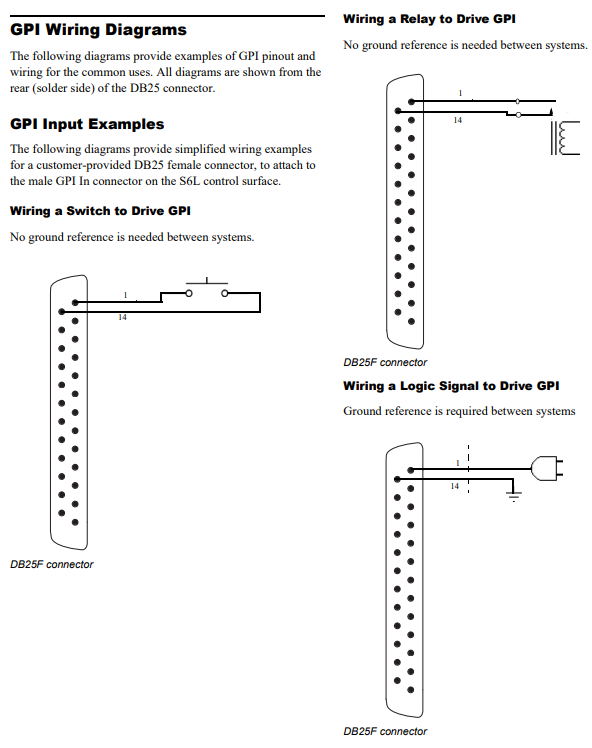

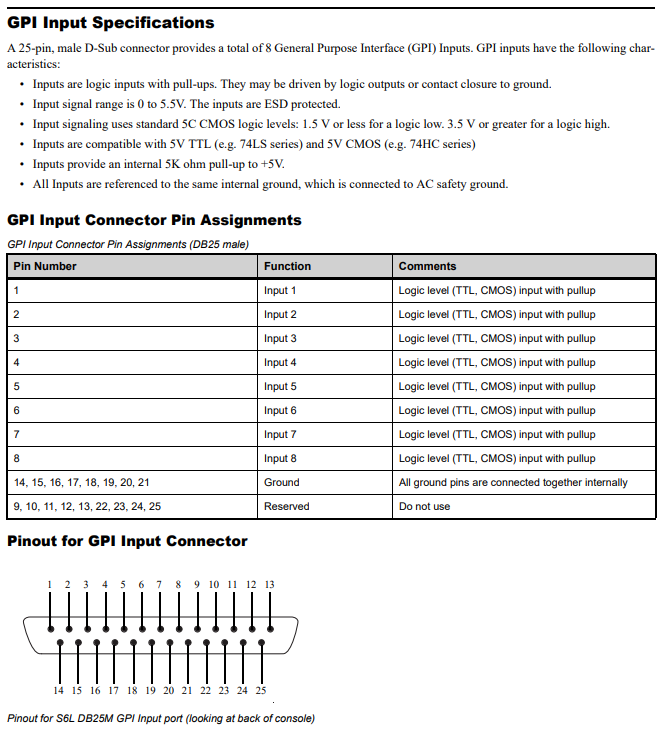

S6L

via S6L System Guide

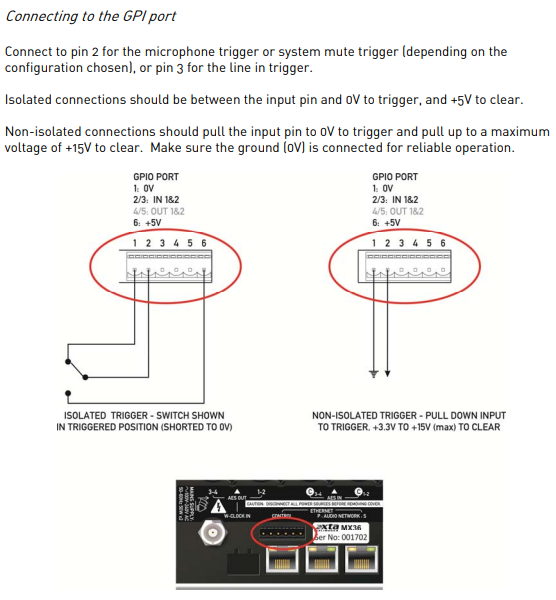

XTA MX36

Via XTA Manual

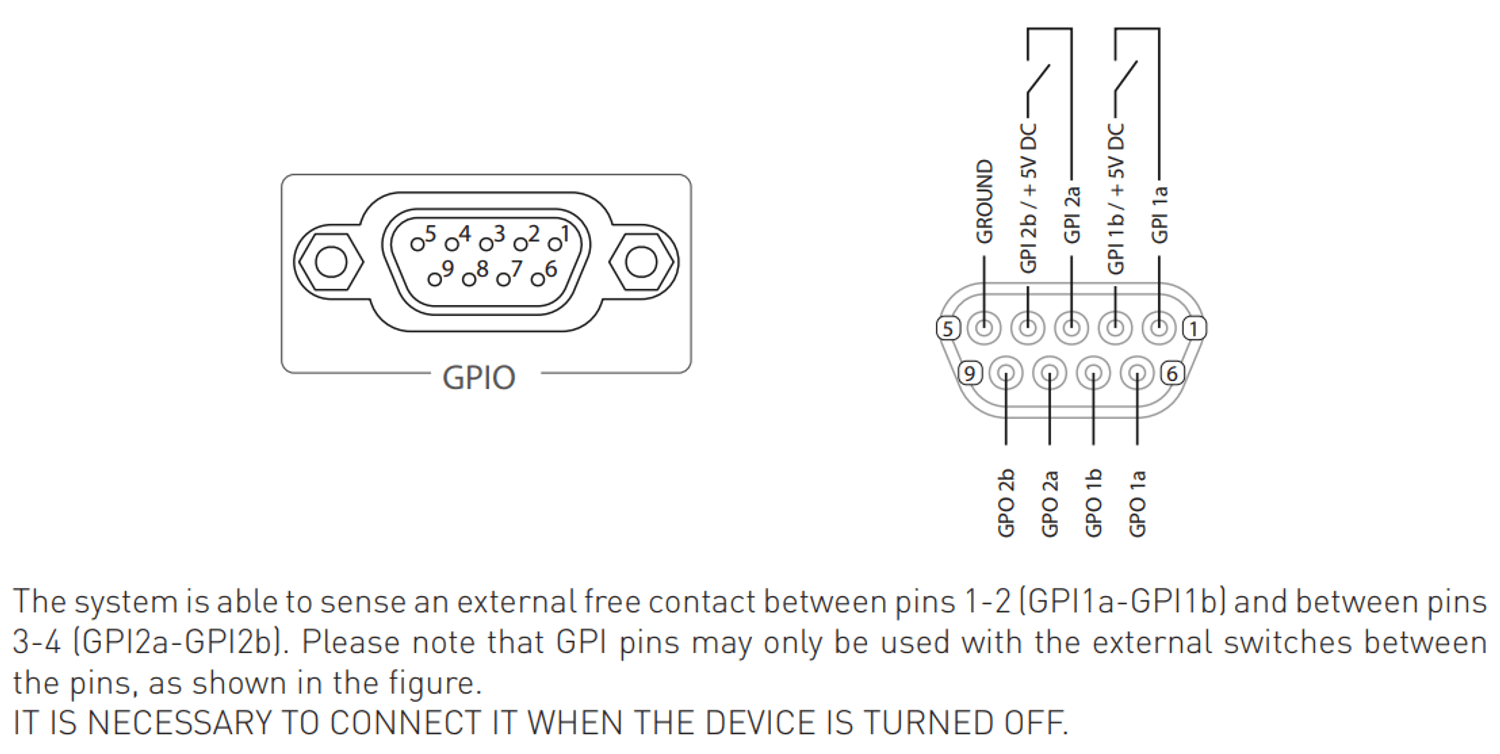

Outline Newton

Via Newton manual

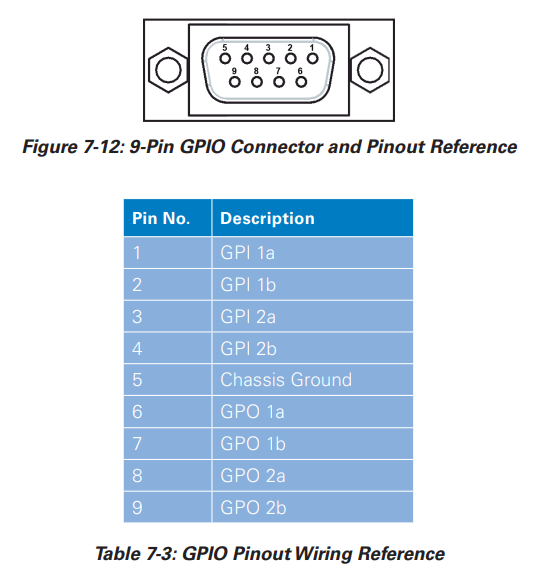

Lake LM44

Via LM Series Operation Manual

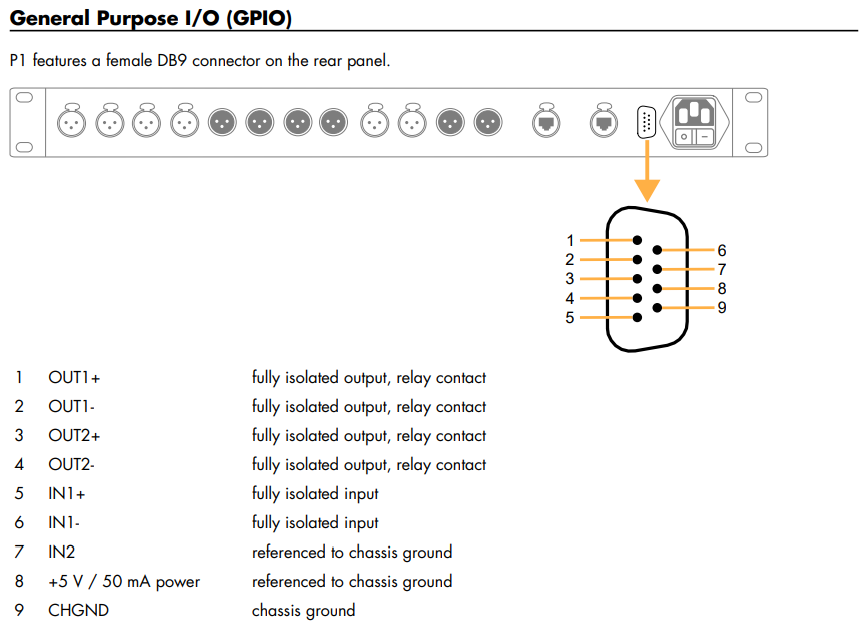

L-Acoustics P1

Via P1 Owners Manual and technical bulletin

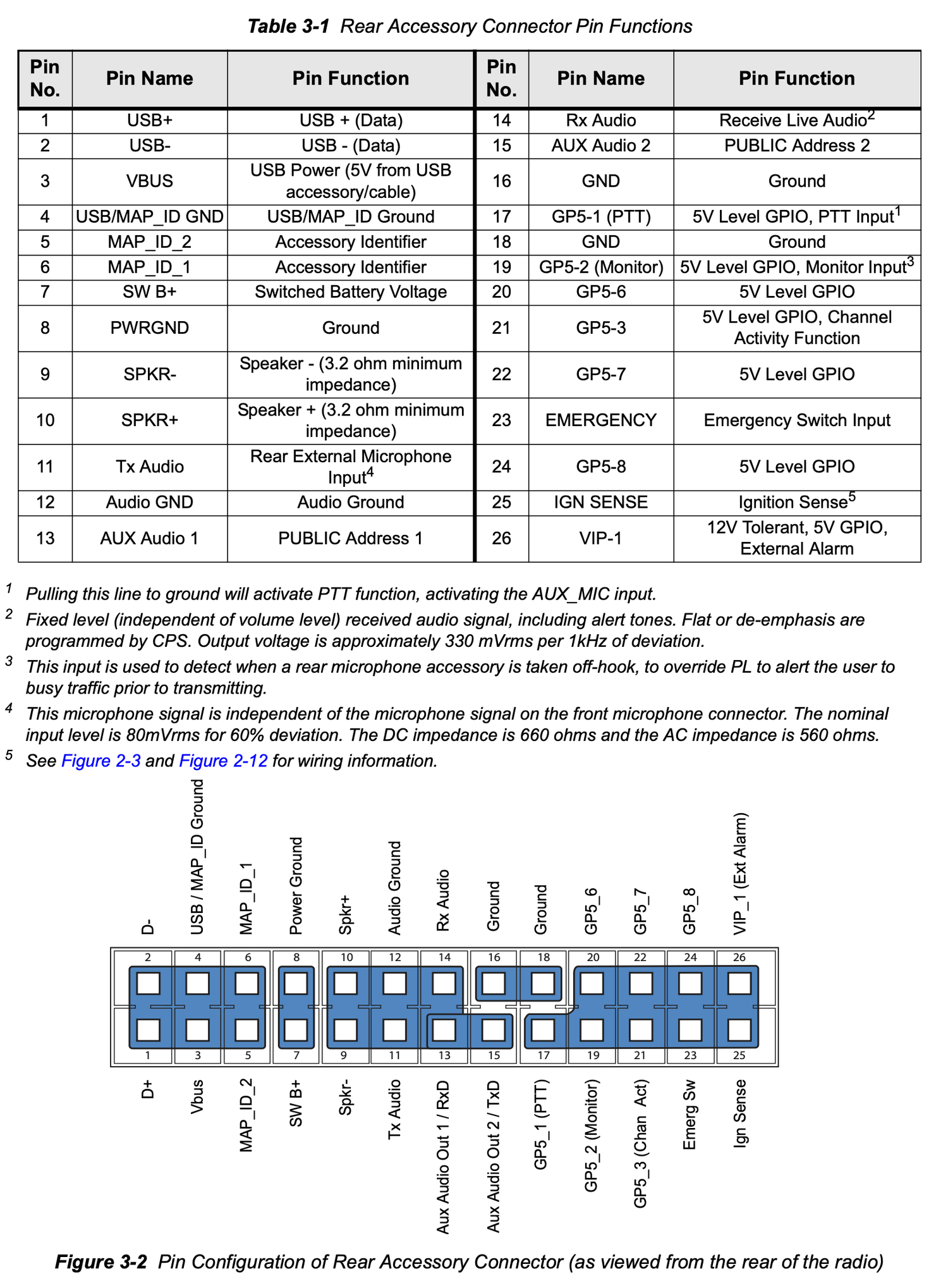

MOTOTRBO MOBILE

Via MOTOTRBO MOBILE INSTALLATION GUIDE
